Bucket Elevators

  • Capacities: Up to 1500 M.T.P.H. at 75% loading. Smaller and larger capacities are available.
  • Capacities are based on material density of 45#/ cu.ft. or 721 kg/m3.
  • Heavy duty construction of components minimizes the need for external stiffeners.

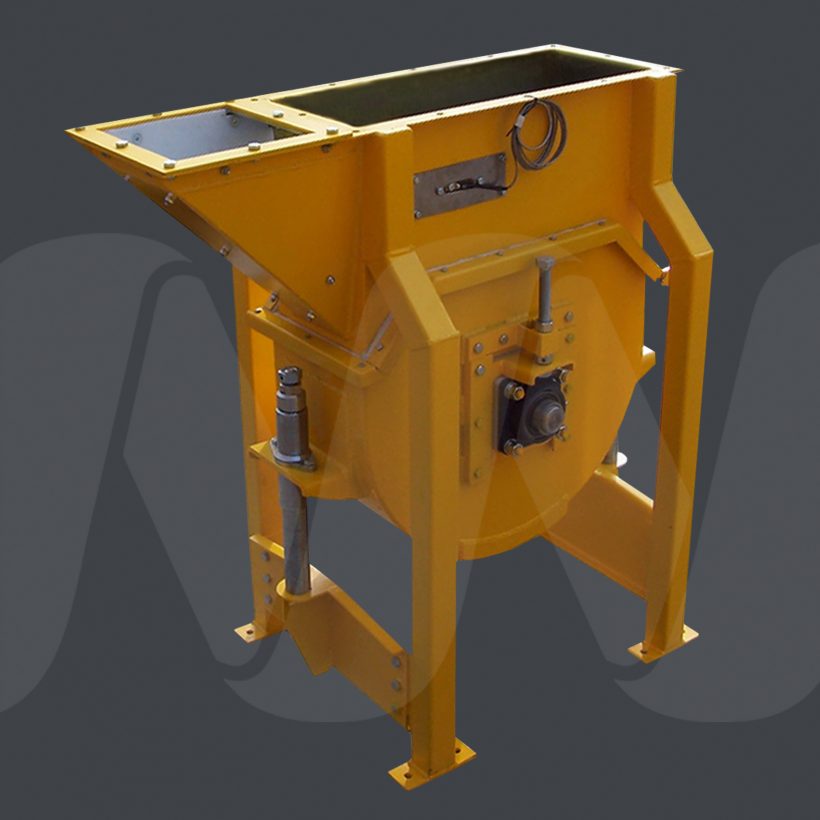

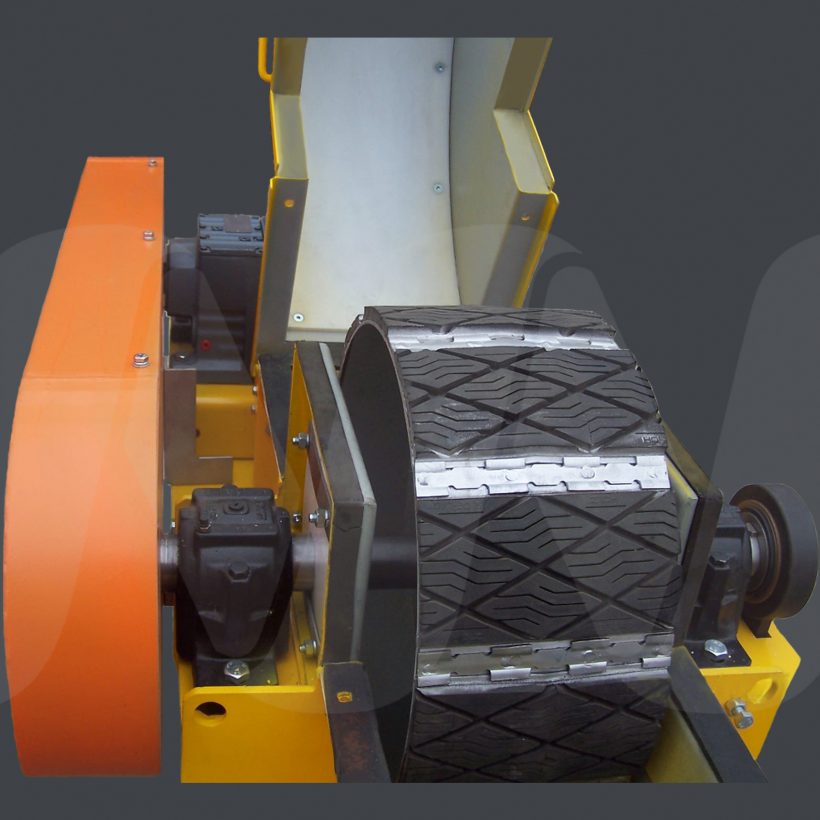

  • Pillow block bearings for head section and flange style bearings for boot sections.
  • Heavy duty totally enclosed take up units ensure that belt stays tight and runs straight.
    -These take up units can be manual, pneumatic, hydraulic or gravity.
  • Oversize inspection doors on the upside of the elevator leg casing.
  • Optional self cleaning boot section to ensure no cross contamination.

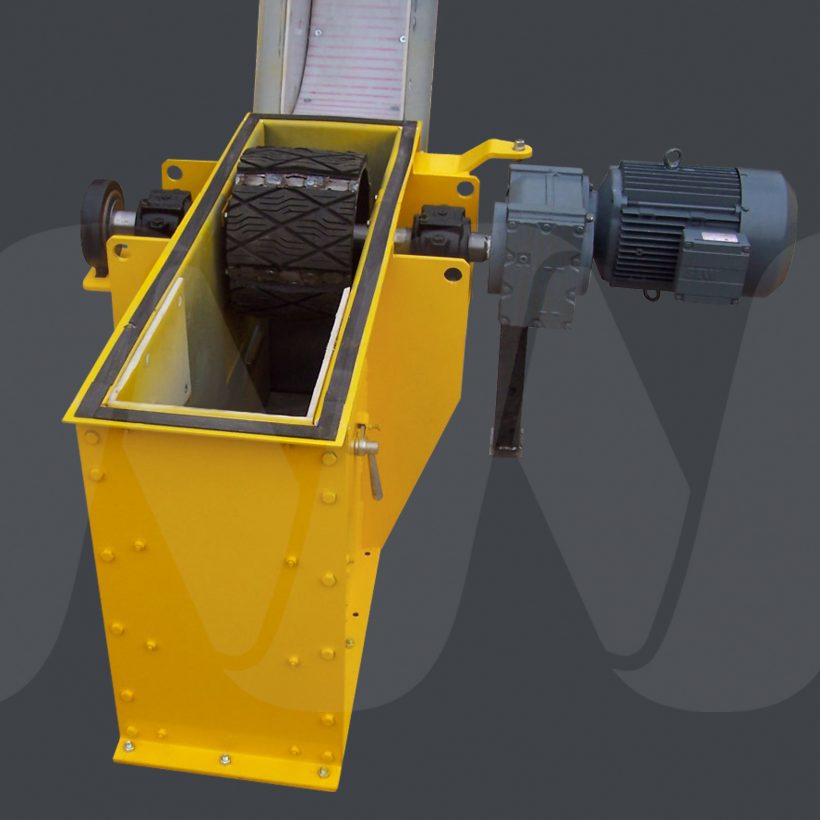

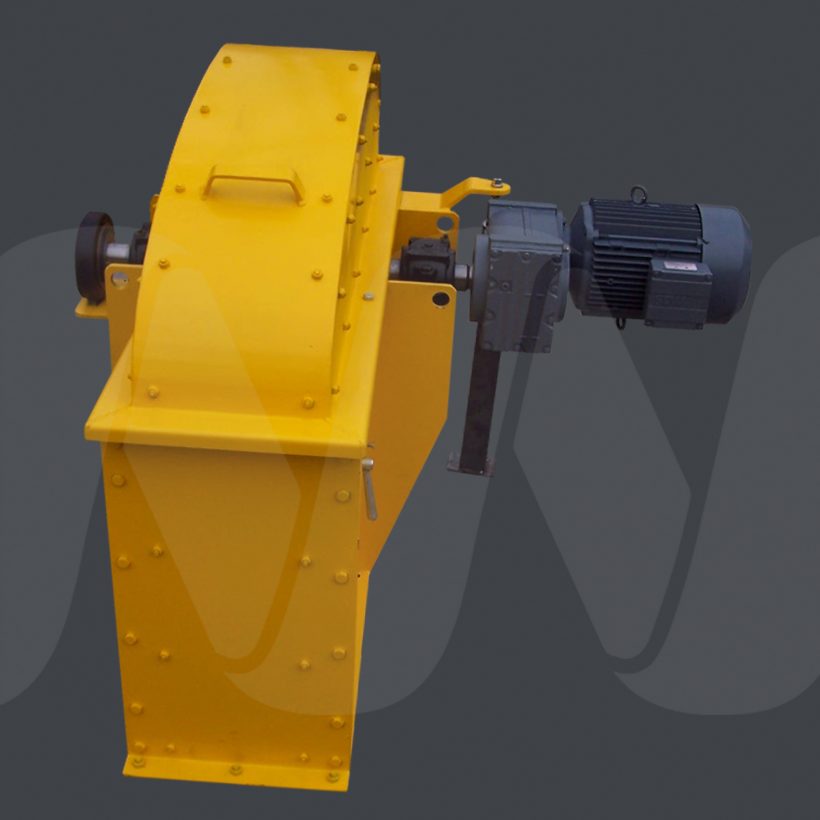

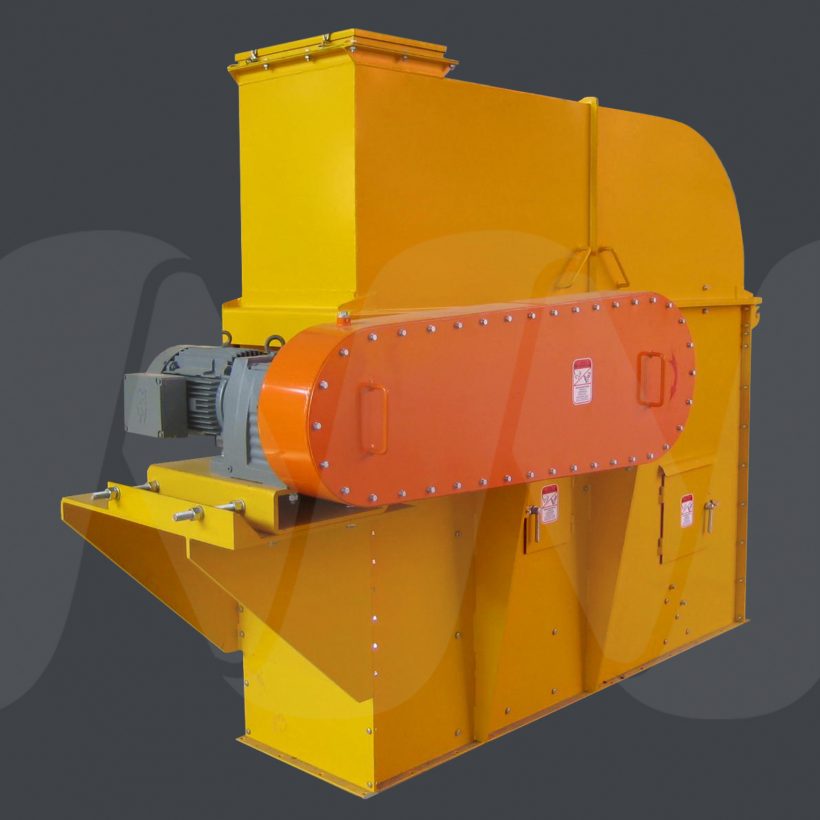

  • Direct coupled gearbox, chain and sprocket and “V” belt drive systems are available.
  • Mild, electroplated galvanized and stainless steel fabrication.
